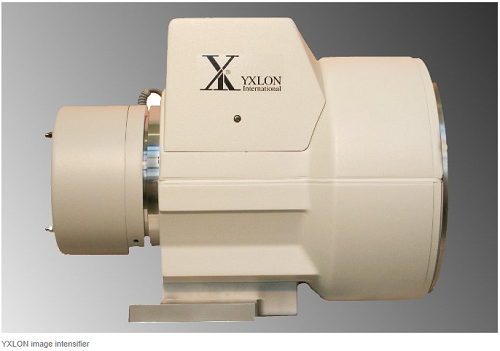

Image Intensifiers for Industrial X-ray Inspection
 Image intensifiers have been used as the image source in industrial X-ray inspection for decades, currently together with high-resolution digital cameras. YXLON image intensifier tubes are made of a special glass so that a browning due to X-ray radiation is prevented to agreat extent.
● Consistent image quality due to "non-browning" glass
● Long lifespan due to overdose shut-down
● Analog and digital video signals
Image intensifiers from the XRSxx2 and XRSxx3 line:
Available with 6", 9" and 12" input monitor and double or triple format conversion. The camera delivers an analog video signal in compliance with the CCIR or EIA standard. A 100/120 Hz module can be used optionally for flicker-free depiction on conventional video monitors. With image intensifiers from the XRSxx2 line, the image from the camera's output window is fed in via a mirror. Sensors behind the semi-translucent mirror ensure a shut-down with certainty in the event of an overdose.
Image intensifiers from the XRSxx5 line:
Available with 6", 9" and 12" input monitor and triple format conversion. The camera delivers a high-resolution 1000*1000 pixel digital video signal.
